PARTICULAR

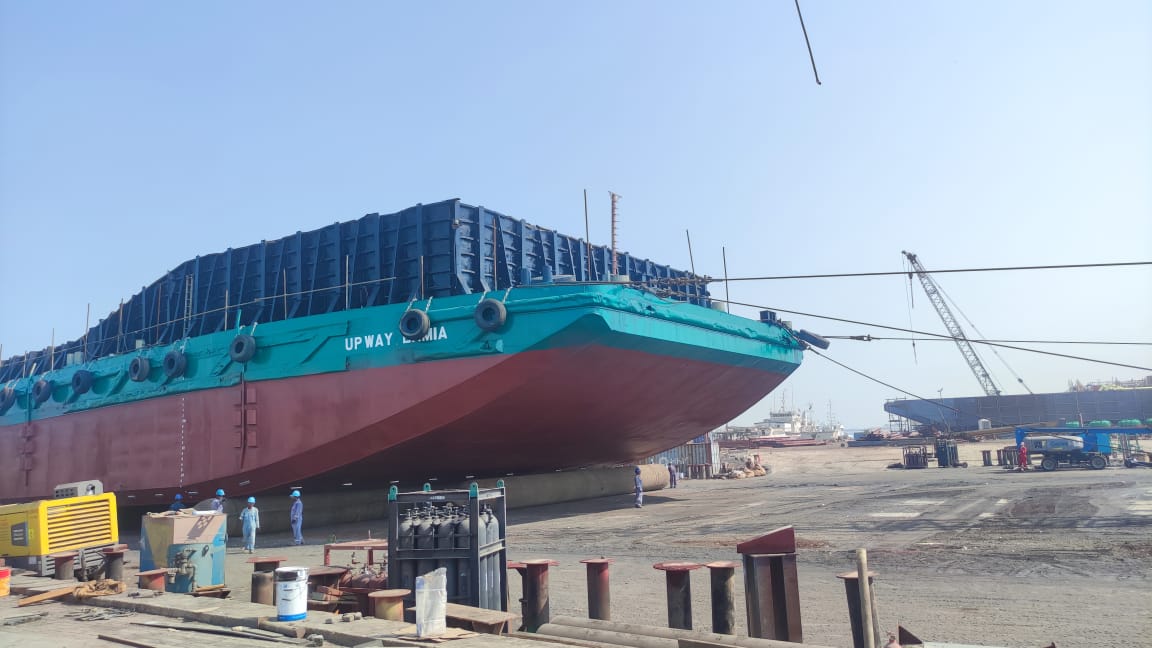

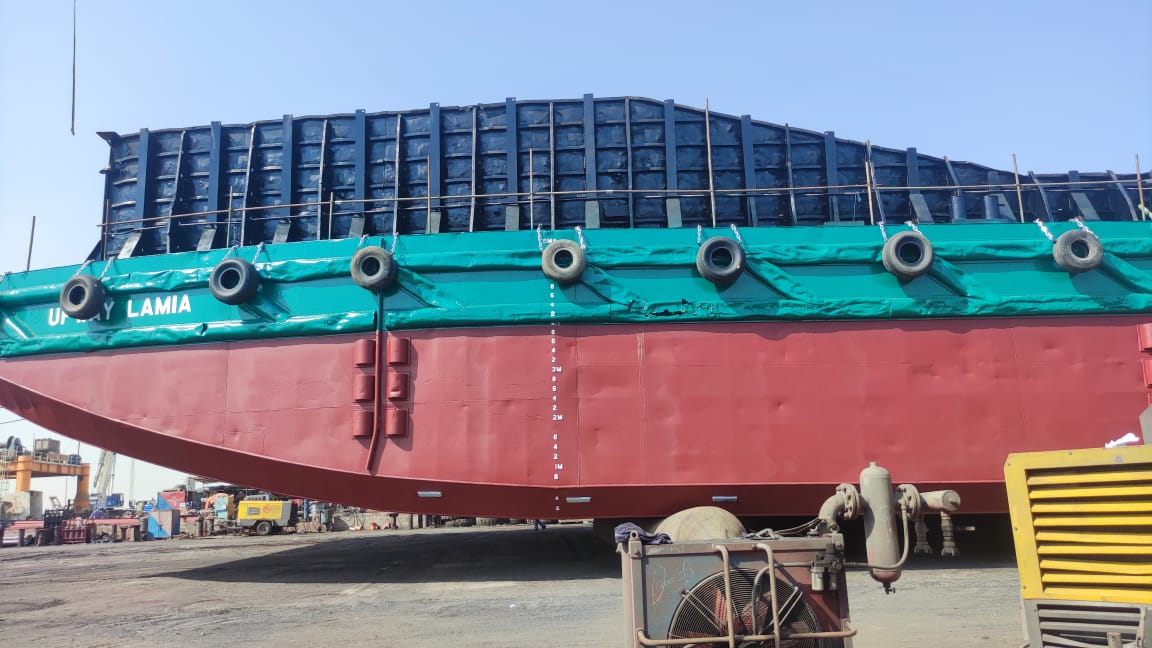

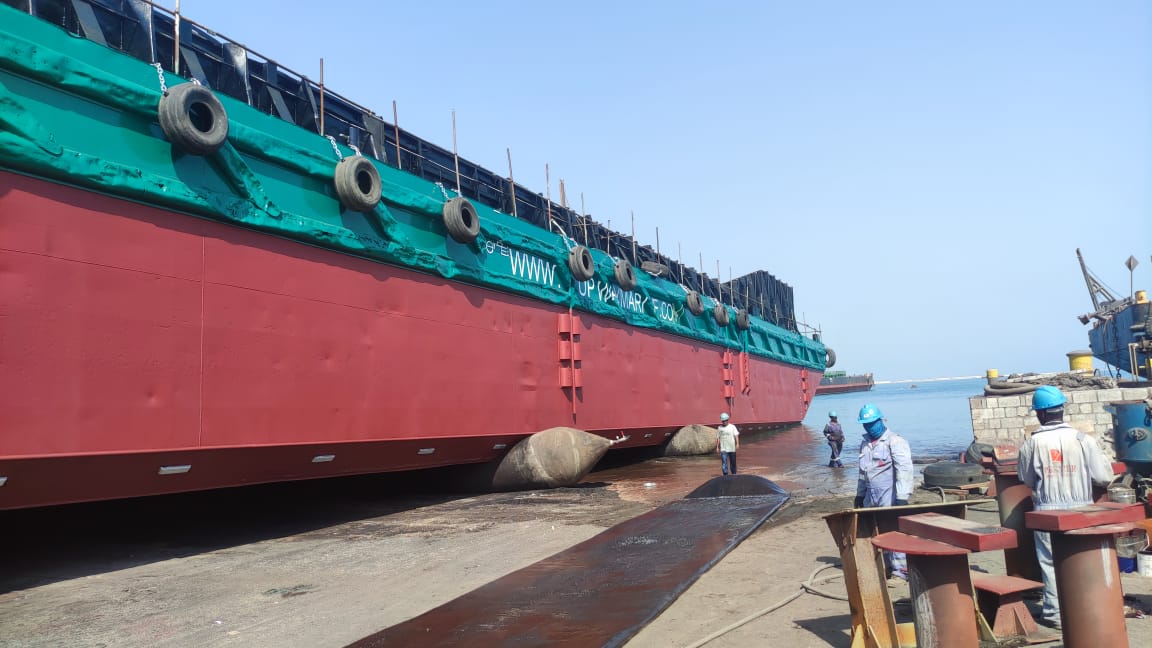

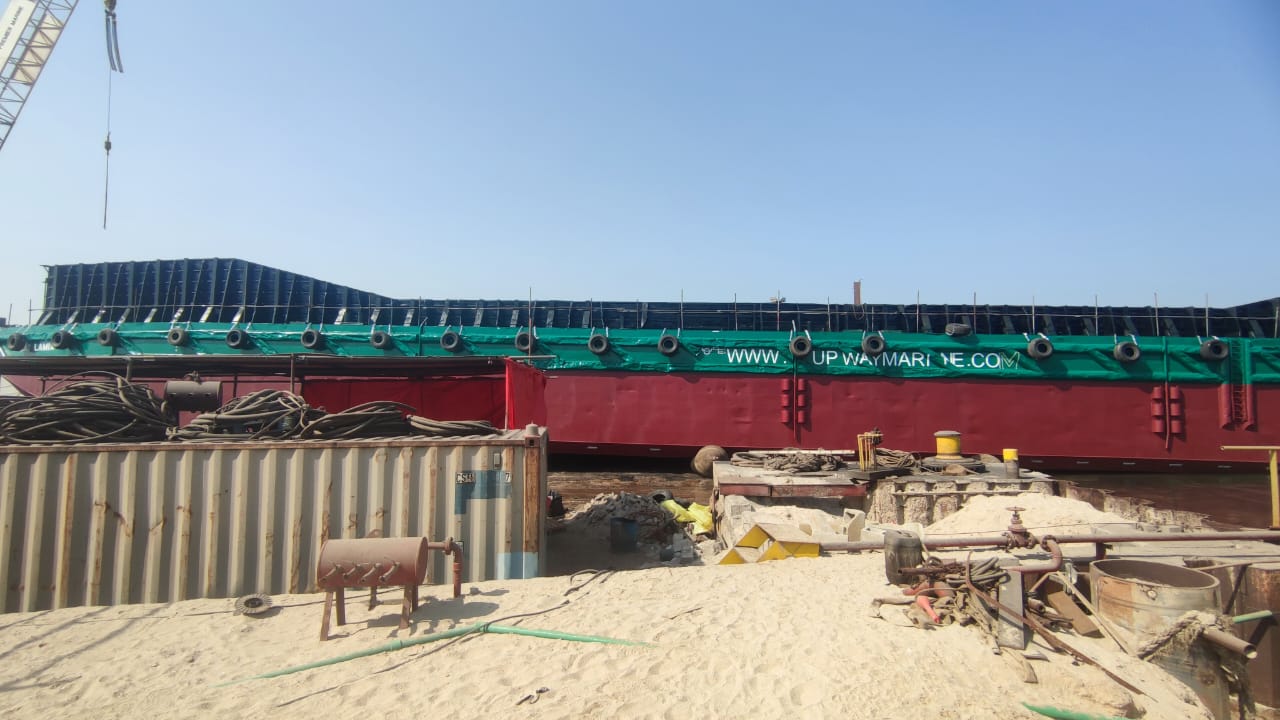

VESSEL NAME: UPWAY LAMIA
PREVIOUS NAME: SKOPELOS III
TYPE OF VESSEL: NON-PROPELLED, DECK BARGE
OWNER NAME: UPWAY MARINE SHIPS & BOATS MAINTENANCE SERVICE FZE
OFFICIAL NUMBER: 9864
HULL NUMBER: 352
CALL SIGN: N/A.
IMO NUMBER: N/A.
BUILT BY: PT ASL SHIPYARD , BATAM,
PLACE BUILT: INDONESIA
YEAR BUILT: 2006
FLAG AUTHORITY: SAN MARINO
PORT OF REGISTRY: SAN MARINO
CLASSIFICATION: DNV
CLASS NOTATION 100 A5 BARGE
GRT: 3539
NRT: 1061
DECK LOADING CAPACITY: 10 TONS/m2
LENGTH 91.44 M
BREADTH: 25.00 M
DEPTH: 6.10 M
SUMMER DRAUGHT: 4.868 M
LIGHT SHIP DRAUGHT: 1.155 M
LIGHT SHIP WEIGHT: 2065.31 TONS
DEADWEIGHT: 8001.44 TONS
DISPLACEMENT: 10066.75 TONS
TECHNICAL DATA:
LONGITUDINAL BULKHEAD / REINGORCEMENT
NOS X THICKNESS: 2X8 MM
STIFFENER SIZE X DISTANCE: L125 X 75 X 7 MM AND 610 MM SPACING
TRANSVERSE BULKHEADS / REINFORCEMENT
NOS X THICKNESS: 6X8 MM
STIFFENER SIZE X DISTANCE: L125 X 75 X 9 MM AND 610 MM SPACING
16” x 9 MM + 4” FLANGE AND 1.83 M SPACING
BEAM SIZE X DISTANCE: 19”x9 MM + 5” FLANGE AND 3.658 M SPACING FROM SIDE
SHELL PLATING
PLATE THICKNESS :
DECK PLATE: 12 MM
BOTTOM PLATE: 12 MM
SIDE SHELL PLATE: 12 MM
OTHER DETAILS :
NUMBER OF DECK: 1
HULL MATERIALL: STEEL
PARAPET HEAGHT: 10 MM X 3.65 M 10 MM X 1.5 M
RAM SIZE: N/A.
ANCHORS: 1X 4 T STOCKLESS
GENERATOR :
MAKE / MODEL: P33-1/ FG WILSON
GENERATOR CAPACITY: 2013 / 33 KVA
RPM: 1500
WINDLASS:
WINDLASS CODE NO: 167-101
WINDLASS TYPE: ELECTRIC SINGLE DRUM
MAKE / MODEL: CLARKE CHAPMAN / F4528N010134
WINDLASS CAPACITY: 5.25 TONS @ 5.94 M/MIN
CHAIN DIAMETER: 38 MM DIA X 110 M U2
